MIC3223YTSE - Microchip

Description: Micrel MIC3223YTSE, LED Driver, 5 V, 9 V, 12 V, 15 V, 18 V, 16-Pin TSSOP

Download MIC3223YTSE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

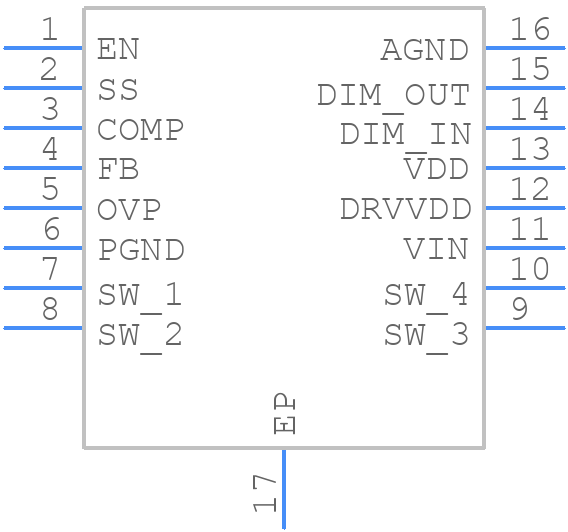

Symbol
MIC3223YTSE - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC3223YTSE - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16
click to zoom
3D Models
MIC3223YTSE - Microchip - 3D model - Small Outline Packages - TSSOP-16
click to zoom

MIC3223YTSE Details

  • Manufacturer Part Number:

    MIC3223YTSE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    TSSOP-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MIC3223YTSE Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure the MIC3223YTSE operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating ranges specified in the datasheet. Additionally, ensure that the device is properly heat-sinked and that the PCB layout is designed to minimize thermal resistance.
  • The maximum output current capability of the MIC3223YTSE is 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and ambient temperature. Refer to the datasheet for more information on output current capability vs. input voltage and temperature.
  • The output voltage of the MIC3223YTSE can be adjusted by connecting a resistor divider network between the output voltage pin and the ground pin. The output voltage can be calculated using the formula: Vout = 1.235 x (R1 / R2 + 1), where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin on the MIC3223YTSE is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and the output voltage is regulated. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.
