MIC3287-24YML-TR - Microchip

Description: LED Lighting Drivers 2x2mm White LED Driver w/ 24V OVP

Download MIC3287-24YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

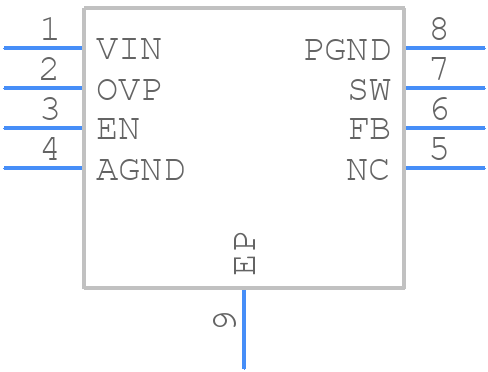

MIC3287-24YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC3287-24YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8pin 2*2
click to zoom
3D Models
MIC3287-24YML-TR - Microchip - 3D model - Small Outline No-lead - 8pin 2*2
click to zoom

MIC3287-24YML-TR Details

  • Manufacturer Part Number:

    MIC3287-24YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, MLF-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MIC3287-24YML-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC3287 evaluation board documentation, which includes thermal vias and a thermal pad to help dissipate heat. Following this layout can help achieve optimal thermal performance.
  • To ensure reliable startup and shutdown, make sure to follow the recommended power-up and power-down sequencing in the datasheet. Additionally, add a soft-start circuit to limit the inrush current during startup, and use a voltage supervisor to monitor the input voltage and ensure it is within the recommended operating range.
  • The MIC3287 can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage. If a larger capacitive load is required, consider adding an output capacitor with a series resistor to limit the inrush current.
  • The output voltage of the MIC3287 can be adjusted by changing the value of the feedback resistors (R1 and R2) according to the formula provided in the datasheet. Make sure to choose resistors with a high precision (1% or better) to ensure accurate output voltage regulation.
  • The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) type such as X5R or X7R ceramic capacitors. This helps to filter out input noise and ensure stable operation.
