MIC33030-AYHJ-TR - Microchip

Description: 8MHz 400mA Internal Inductor Buck Regula

Download MIC33030-AYHJ-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

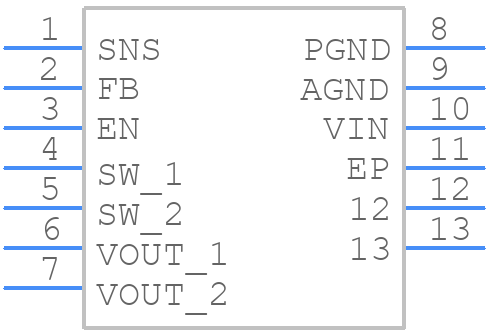

MIC33030-AYHJ-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC33030-AYHJ-TR - Microchip PCB footprint - Other - Other - 10 PIN 2.5X2 MLF (HJ)
click to zoom
3D Models
MIC33030-AYHJ-TR - Microchip - 3D model - Other - 10 PIN 2.5X2 MLF (HJ)
click to zoom

MIC33030-AYHJ-TR Details

  • Manufacturer Part Number:

    MIC33030-AYHJ-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN PFM MODE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    8000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC33030-AYHJ-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC33030-AYHJ-TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type to maintain stability.
  • The MIC33030-AYHJ-TR is rated for operation up to 125°C ambient temperature. However, it's essential to consider the device's power dissipation and thermal resistance when operating at high temperatures to ensure reliable operation.
  • Yes, the MIC33030-AYHJ-TR is suitable for high-reliability and automotive applications. It's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
  • To troubleshoot issues with the MIC33030-AYHJ-TR, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values in the datasheet. Use oscilloscopes and other diagnostic tools to identify any anomalies or oscillations.
