MIC33030-GYHJ-TR - Microchip

Description: Switching Voltage Regulators 8MHz 400mA Internal Inductor Buck Regulator with HyperLight Load,

Download MIC33030-GYHJ-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

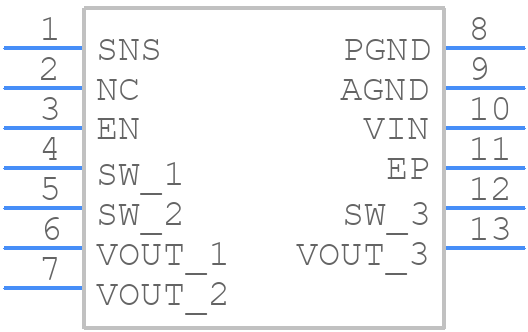

MIC33030-GYHJ-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC33030-GYHJ-TR - Microchip PCB footprint - Other - Other - MIC33030-GYHJ-TR-5
click to zoom
3D Models
MIC33030-GYHJ-TR - Microchip - 3D model - Other - MIC33030-GYHJ-TR-5
click to zoom

MIC33030-GYHJ-TR Details

  • Manufacturer Part Number:

    MIC33030-GYHJ-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    ALSO OPERATES IN PFM MODE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    1.845 V

  • Output Voltage-Min:

    1.755 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    8000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC33030-GYHJ-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC33030 evaluation board design files, which can be found on the Microchip website. The layout includes thermal vias and a thermal pad to help dissipate heat.
  • To ensure stability, follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output with capacitors, and use a low-ESR output capacitor to minimize ringing.
  • The maximum input voltage rating for the MIC33030 is 6V, but it's recommended to operate the device within the specified input voltage range (2.7V to 5.5V) to ensure reliable operation and minimize stress on the device.
  • The MIC33030 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the thermal derating curves in the datasheet.
  • Use a oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or ringing. Also, verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. If issues persist, contact Microchip technical support for further assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC33030-GYHJ-TR Overview

Use the download button to access the MIC33030-GYHJ-TR schematic symbol, PCB footprint, and 3D model.
