MIC33050-AYHL-TR - Microchip

Description: Microchip MIC33050-AYHL-TR, 1, Buck/Boost Converter Buck Converter 600mA, Adjustable, 4 MHz 12-Pin, MLF

Download MIC33050-AYHL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

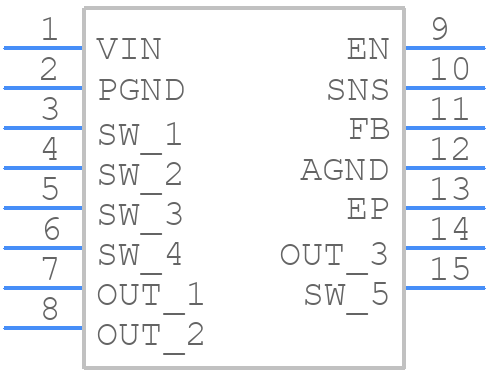

MIC33050-AYHL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC33050-AYHL-TR - Microchip PCB footprint - Other - Other - MIC33050-AYHL-TR-2
click to zoom
3D Models
MIC33050-AYHL-TR - Microchip - 3D model - Other - MIC33050-AYHL-TR-2
click to zoom

MIC33050-AYHL-TR Details

  • Manufacturer Part Number:

    MIC33050-AYHL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    VDFN-12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC33050-AYHL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the MIC33050-AYHL-TR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 22uF), the input capacitor is at least 1uF, and the feedback resistors are within the recommended range (1kΩ to 10kΩ). Also, ensure the PCB layout is well-designed and the device is properly decoupled.
  • The MIC33050-AYHL-TR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The MIC33050-AYHL-TR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Consult the datasheet for thermal derating information.
  • The output voltage of the MIC33050-AYHL-TR can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (1.25V), R2 is the feedback resistor, and R1 is the divider resistor.
