Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MIC37101-2.1YM - Microchip

Description: LDO Voltage Regulators LV, 1.0A uCap fixed Vout LDO

Download MIC37101-2.1YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

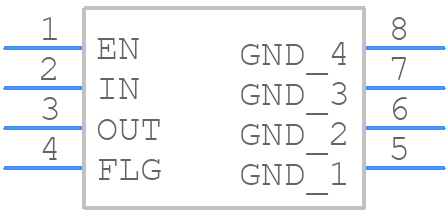

MIC37101-2.1YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC37101-2.1YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOICN-8LD-PL-1_2024
click to zoom
3D Models
MIC37101-2.1YM - Microchip - 3D model - Small Outline Packages - SOICN-8LD-PL-1_2024
click to zoom

MIC37101-2.1YM Details

  • Manufacturer Part Number:

    MIC37101-2.1YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.28 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Line Regulation-Max:

    0.0105%

  • Load Regulation-Max:

    0.021%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.142 V

  • Output Voltage1-Min:

    2.058 V

  • Output Voltage1-Nom:

    2.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.94 mm

MIC37101-2.1YM Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC37101-2.1YM involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • Choose X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the input capacitor, a value between 1uF to 10uF is suitable, while for the output capacitor, a value between 10uF to 22uF is recommended. Ensure the capacitors have a low ESR and are placed close to the IC.
  • The maximum ambient temperature for MIC37101-2.1YM is 85°C, but it can operate up to 125°C with derating. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, MIC37101-2.1YM is suitable for high-reliability and automotive applications due to its high MTBF, low failure rate, and compliance with automotive standards such as AEC-Q100. However, ensure you follow the recommended design and testing guidelines for these applications.
  • Common issues with MIC37101-2.1YM can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is optimal. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC37101-2.1YM Overview

Use the download button to access the MIC37101-2.1YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC37, or try a keyword search, such as Linear Regulator ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to MIC37101-2.1YM

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MIC37101-2.1YM Alternates

Showing results

Image Part Number Model
Part Image MIC37101-2.1YMTR Micrel Inc

Fixed Positive LDO Regulator, 2.1V, 0.5V Dropout, BIPolar, PDSO8
Part Image MIC37101-2.1YMTR Microchip Technology Inc

Fixed Positive LDO Regulator, 2.1V, 0.5V Dropout, BIPolar, PDSO8
