MIC37302WU - Microchip

Description: Microchip Technology MIC37302WU, LDO Regulator, 3A Adjustable, 1.24 → 5.5 V, ±2% 5-Pin, D2PAK

Download MIC37302WU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIC37302WU - Microchip - PCB symbol
click to zoom
PCB Footprints

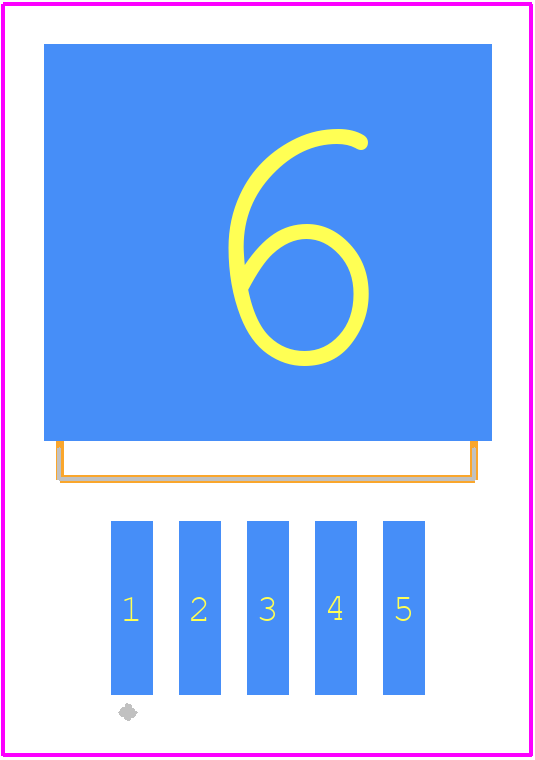

MIC37302WU - Microchip PCB footprint - Other - Other - 5-Lead TO-263
click to zoom
3D Models
MIC37302WU - Microchip - 3D model - Other - 5-Lead TO-263
click to zoom

MIC37302WU Details

  • Manufacturer Part Number:

    MIC37302WU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, TO-263, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    DDPAK-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.363 mm

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.902 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Width:

    8.7755 mm

MIC37302WU Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC37302WU near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
  • To ensure a stable and accurate output voltage, it's crucial to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, ensure that the input voltage is within the specified range, and the output is properly decoupled with a capacitor.
  • The maximum output current capability of the MIC37302WU is 3A. However, it's essential to consider the thermal limitations and ensure the device is properly cooled to maintain reliability and prevent overheating.
  • To protect the MIC37302WU from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the specified range.
  • The recommended input capacitor value and type for the MIC37302WU is a 10uF to 22uF X5R or X7R ceramic capacitor, placed as close as possible to the VIN pin. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC37302WU Overview

Use the download button to access the MIC37302WU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC37, or try a keyword search, such as Linear Regulator ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
