MIC37303YML-T5 - Microchip

Description: LDO Voltage Regulators 3A, Low Voltage uCap LDO Regulator

Download MIC37303YML-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

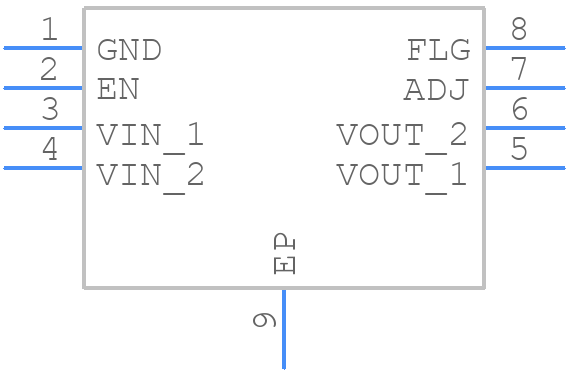

MIC37303YML-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC37303YML-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-8-ren1
click to zoom
3D Models
MIC37303YML-T5 - Microchip - 3D model - Small Outline No-lead - DFN-8-ren1
click to zoom

MIC37303YML-T5 Details

  • Manufacturer Part Number:

    MIC37303YML-T5

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Load Regulation-Max(%):

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC37303YML-T5 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC37303YML-T5 near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note or a thermal simulation can provide more specific guidance.
  • To ensure the output voltage is stable and accurate, it's essential to follow proper layout and decoupling practices, such as placing decoupling capacitors close to the device, using a low-ESR output capacitor, and minimizing the loop area of the feedback network.
  • While the datasheet specifies a maximum input voltage of 26V, it's essential to consider the maximum voltage rating of the specific package and the application's requirements. In general, it's recommended to operate the device within the specified voltage range to ensure reliability and performance.
  • To protect the device from overcurrent and overheating, it's recommended to implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms, such as using a current sense resistor and a thermal shutdown circuit.
  • The recommended input capacitor value and type depend on the specific application and input voltage. A general guideline is to use a low-ESR capacitor with a value between 1uF to 10uF, such as a ceramic or film capacitor, to ensure stable operation and minimize input voltage ripple.
