MIC37303YML-TR - Microchip

Description: LDO Regulator Pos 1.24V to 5.5V 3A 8-Pin DFN EP T/R

Download MIC37303YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

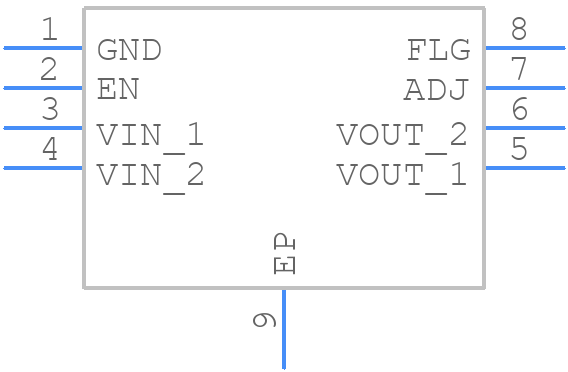

MIC37303YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC37303YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pin 3mm × 3mm DFN (ML)
click to zoom
3D Models
MIC37303YML-TR - Microchip - 3D model - Small Outline No-lead - 8-Pin 3mm × 3mm DFN (ML)
click to zoom

MIC37303YML-TR Details

  • Manufacturer Part Number:

    MIC37303YML-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Load Regulation-Max(%):

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC37303YML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC37303YML-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have sufficient copper area to dissipate heat.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design guidelines, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and even permanent damage to the device. It's crucial to ensure the device operates within its specified temperature range.
  • To handle ESD protection, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in the design, such as TVS diodes or ESD protection arrays.
  • Not following the recommended pin connections can lead to device malfunction, reduced performance, or even damage to the device. It's essential to follow the recommended pin connections as specified in the datasheet.
