MIC39101-2.5YM - Microchip

Description: Microchip MIC39101-2.5YM, LDO Voltage Regulator, 2.5A, 2.5 V ±2%, 2.25 → 16 Vin, 8-Pin SOIC

Download MIC39101-2.5YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

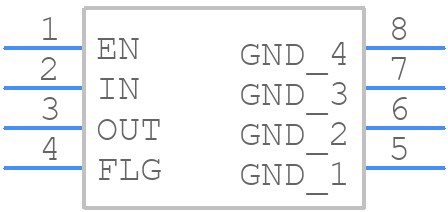

Symbol
MIC39101-2.5YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC39101-2.5YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - soic(m)
click to zoom
3D Models
MIC39101-2.5YM - Microchip - 3D model - Small Outline Packages - soic(m)
click to zoom

MIC39101-2.5YM Details

  • Manufacturer Part Number:

    MIC39101-2.5YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.63 V

  • Dropout Voltage1-Nom:

    0.41 V

  • Input Voltage Absolute-Max:

    20 V

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Line Regulation-Max:

    0.0125%

  • Load Regulation-Max:

    0.025%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.94 mm

MIC39101-2.5YM Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC39101-2.5YM involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the output voltage within the specified range. Additionally, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The MIC39101-2.5YM can deliver up to 1A of output current. However, it's recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • The MIC39101-2.5YM is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with MIC39101-2.5YM, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the specified temperature range and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC39101-2.5YM Overview

Use the download button to access the MIC39101-2.5YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC39, or try a keyword search, such as Linear Regulator ICs
