A good PCB layout for optimal thermal performance involves placing the MIC4451YM-TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the device away from high-current carrying traces and using thermal vias can help reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines. This includes using a heat sink, ensuring good airflow, and keeping the device within its recommended operating temperature range. Additionally, consider using thermal interface materials and following proper soldering and assembly techniques to minimize thermal resistance.
For EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, such as keeping high-frequency traces short and away from sensitive analog circuits. Use shielding, filtering, and decoupling capacitors as needed, and ensure that the device is properly grounded. Additionally, consider using EMI-absorbing materials and following proper testing and certification procedures.
To troubleshoot issues with the MIC4451YM-TR, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Use oscilloscopes and logic analyzers to debug the circuit, and check for proper power supply, grounding, and decoupling. Verify that the device is operating within its recommended specifications, and consider using simulation tools to model and analyze the circuit.
Operating the MIC4451YM-TR at low voltages can affect its performance, including reduced output current capability, increased quiescent current, and potential instability. Ensure that the device is operated within its recommended voltage range, and consider using voltage regulators or power conditioning circuits to maintain a stable voltage supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC4451YM-TR Overview

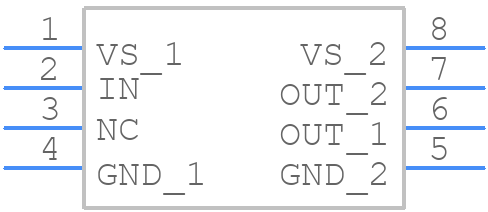

Use the download button to access the MIC4451YM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC44,
or try a keyword search, such as MOSFET Drivers
