Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MIC44F19YMME-TR - Microchip

Description: Gate Drivers 6A High Speed MOSFET Drivers

Download MIC44F19YMME-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

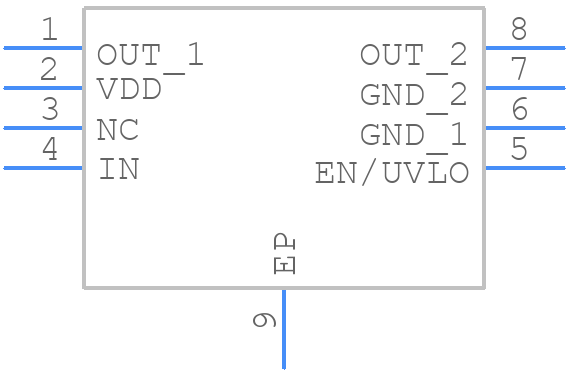

MIC44F19YMME-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC44F19YMME-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin Exposed Pad (ePad)-1 MSOP (MME)
click to zoom
3D Models
MIC44F19YMME-TR - Microchip - 3D model - Small Outline Packages - 8-pin Exposed Pad (ePad)-1 MSOP (MME)
click to zoom

MIC44F19YMME-TR Details

  • Manufacturer Part Number:

    MIC44F19YMME-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.04 mm

  • Supply Voltage-Max:

    12.6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    12.6 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.055 µs

  • Turn-on Time:

    0.055 µs

  • Width:

    3 mm

MIC44F19YMME-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC44F19YMME-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have sufficient copper area to dissipate heat.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within its specified temperature range to maintain reliability and performance.
  • To handle ESD protection for the MIC44F19YMME-TR, follow proper handling and storage procedures, use ESD-protective packaging, and consider implementing ESD protection circuits in your design. Additionally, ensure that your PCB design includes ESD protection components, such as TVS diodes or ESD arrays.
  • When assembling and reworking the MIC44F19YMME-TR on a PCB, ensure that you follow proper soldering and desoldering techniques, use suitable soldering irons and flux, and avoid overheating the device. Additionally, consider using a rework station with a thermal profiler to minimize thermal stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC44F19YMME-TR Overview

Use the download button to access the MIC44F19YMME-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC44, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to MIC44F19YMME-TR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MIC44F19YMME-TR Alternates

Showing results

Image Part Number Model
Part Image MIC44F19YMME Microchip Technology Inc

Buffer/Inverter Based MOSFET Driver, 6A, BCDMOS, PDSO8
