MIC45205-1YMP-TR - Microchip

Description: 1-OUT 0.8V to 5.5V 6A 52-Pin B1QFN EP T/R

Download MIC45205-1YMP-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

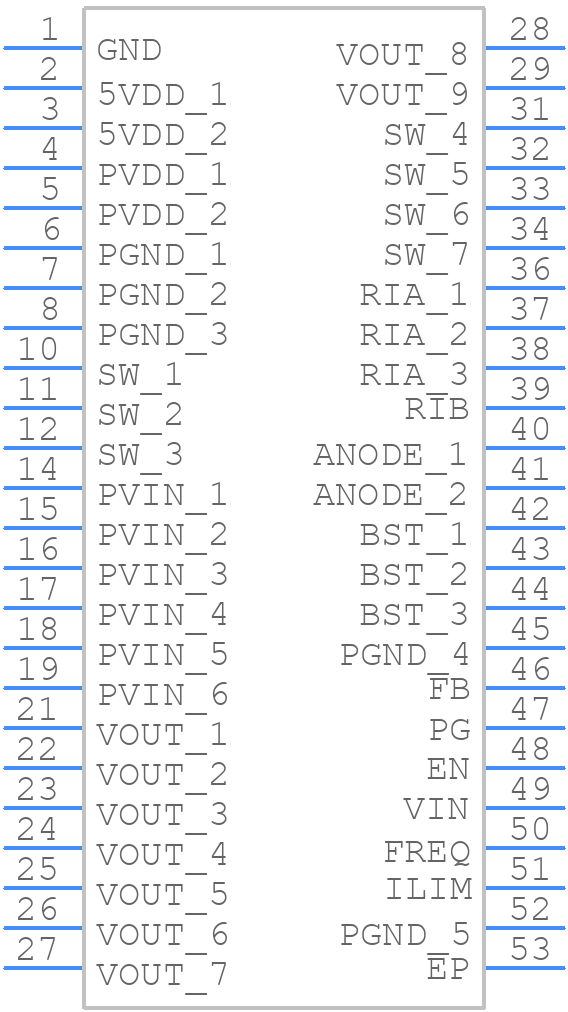

MIC45205-1YMP-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC45205-1YMP-TR - Microchip PCB footprint - Other - Other - 52-PIN 8mmX8mm QFN(MP)
click to zoom
3D Models
MIC45205-1YMP-TR - Microchip - 3D model - Other - 52-PIN 8mmX8mm QFN(MP)
click to zoom

MIC45205-1YMP-TR Details

  • Manufacturer Part Number:

    MIC45205-1YMP-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    52

  • Manufacturer Package Code:

    B1QFN-52

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2017-06-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    22.1 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC52(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    3 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    8 mm

MIC45205-1YMP-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC45205-1YMP-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note or a reference design from Microchip would be helpful.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and timing diagrams provided in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and that the device is properly configured through the EN and SYNC pins.
  • Operating the MIC45205-1YMP-TR outside of the recommended operating conditions can lead to reduced performance, decreased reliability, and potentially even device damage. It's essential to ensure that the device operates within the specified temperature range, voltage range, and other recommended conditions to guarantee optimal performance and reliability.
  • To troubleshoot issues with the MIC45205-1YMP-TR, start by reviewing the datasheet and application notes to ensure proper configuration and usage. Then, use debugging tools such as oscilloscopes or logic analyzers to identify the root cause of the issue. Microchip's technical support and community forums can also provide valuable resources and guidance.
  • Yes, when designing with the MIC45205-1YMP-TR, it's essential to consider EMI/EMC guidelines to ensure compliance with regulatory requirements and to minimize electromagnetic interference. Follow proper PCB layout and shielding techniques, and consider using EMI filters or shielding components as needed.
