A good PCB layout for optimal thermal performance involves placing the MIC45208-1YMP-T1 near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage and current limits. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its specified temperature range.
When using the MIC45208-1YMP-T1 in a high-reliability application, it's crucial to consider the device's failure modes, such as thermal shutdown and overcurrent protection. Implementing redundant systems, error detection, and correction mechanisms can help ensure the overall system's reliability.
To troubleshoot issues with the MIC45208-1YMP-T1, start by reviewing the device's operating conditions, including voltage, current, and temperature. Check for signs of physical damage, such as cracks or corrosion, and verify that the device is properly soldered. Use oscilloscopes or logic analyzers to monitor the device's signals and identify potential issues.
Yes, the MIC45208-1YMP-T1, like any switching regulator, can generate electromagnetic interference (EMI). To minimize EMI, use proper PCB layout techniques, such as separating analog and digital grounds, and using shielding or filtering components. Additionally, ensure that the device is properly decoupled and that the input and output capacitors are properly selected.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC45208-1YMP-T1 Overview

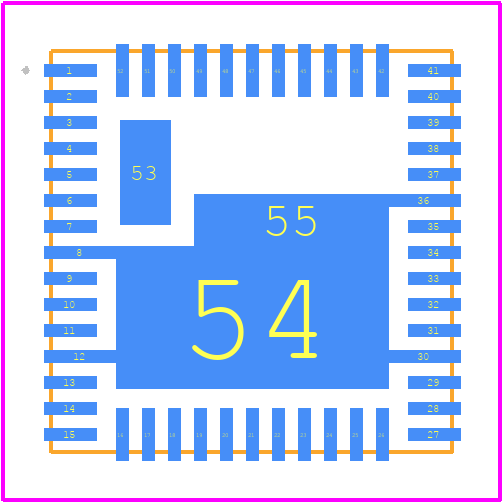

Use the download button to access the MIC45208-1YMP-T1 schematic symbol, PCB footprint, and 3D model.
