MIC4574-5.0YN - Microchip

Description: Switching Voltage Regulators 200kHz 0.5A Step-down Regulator

Download MIC4574-5.0YN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

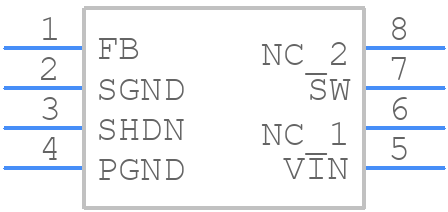

MIC4574-5.0YN - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4574-5.0YN - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8LD-PL-1_2023
click to zoom
3D Models
MIC4574-5.0YN - Microchip - 3D model - Dual-In-Line Packages - PDIP-8LD-PL-1_2023
click to zoom

MIC4574-5.0YN Details

  • Manufacturer Part Number:

    MIC4574-5.0YN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    220 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MIC4574-5.0YN Frequently Asked Questions (FAQs)

  • The MIC4574-5.0YN can handle an input voltage up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and GND pins. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended range.
  • The MIC4574-5.0YN can supply a minimum output current of 1mA, but it's recommended to operate within the specified output current range of 10mA to 500mA for optimal performance.
  • The MIC4574-5.0YN is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • The output voltage tolerance of the MIC4574-5.0YN is ±2% over the entire operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (5.0V) by the tolerance percentage (±2%). This gives you a range of 4.9V to 5.1V.
