MIC5011YM-TR - Microchip

Description: Gate Drivers High Side MOSFET Predriver

Download MIC5011YM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

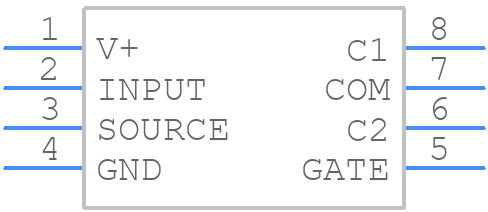

Symbol
MIC5011YM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5011YM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC (M)-2022
click to zoom
3D Models
MIC5011YM-TR - Microchip - 3D model - Small Outline Packages - 8-Pin SOIC (M)-2022
click to zoom

MIC5011YM-TR Details

  • Manufacturer Part Number:

    MIC5011YM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.879 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    50 µs

  • Width:

    3.9 mm

MIC5011YM-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC5011YM-TR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and keep the switching node (pin 5) away from sensitive analog circuits.
  • To ensure the MIC5011YM-TR operates within its safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Ensure the device is not subjected to excessive voltage or current stress, and provide adequate heat sinking to prevent overheating.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation.
  • To optimize the MIC5011YM-TR for low standby power consumption, ensure the enable pin (pin 1) is properly biased, use a low-quiescent-current voltage regulator, and minimize the output voltage ripple. Additionally, consider using a low-power mode or shutdown feature if available.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10uF to 22uF is recommended for the output capacitor. This helps to filter out high-frequency noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5011YM-TR Overview

Use the download button to access the MIC5011YM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC50, or try a keyword search, such as MOSFET Drivers
