MIC5019YFT-T5 - Microchip

Description: High-side N-channel MOSFET Driver TQFN4

Download MIC5019YFT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

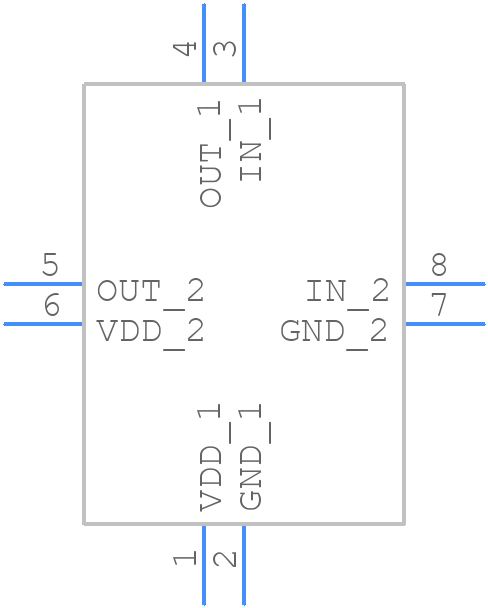

MIC5019YFT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5019YFT-T5 - Microchip PCB footprint - Other - Other - 1.2mm x 1.2mm Thin QFN (FT)
click to zoom
3D Models
MIC5019YFT-T5 - Microchip - 3D model - Other - 1.2mm x 1.2mm Thin QFN (FT)
click to zoom

MIC5019YFT-T5 Details

  • Manufacturer Part Number:

    MIC5019YFT-T5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    4

  • Manufacturer Package Code:

    UDFN-4

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XQCC-N4

  • JESD-609 Code:

    e4

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.0000106 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC4,.05SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    9 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    0.042 µs

  • Width:

    1.2 mm

MIC5019YFT-T5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the MIC5019YFT-T5 should include a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10uF) placed close to the device. Additionally, the input and output capacitors should be placed as close as possible to the device pins.
  • To ensure stability, the MIC5019YFT-T5 requires a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions.
  • The MIC5019YFT-T5 has an operating ambient temperature range of -40°C to +125°C. However, the device's junction temperature should not exceed 150°C to ensure reliable operation.
  • Yes, the MIC5019YFT-T5 is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and has a Moisture Sensitivity Level (MSL) of 1, making it suitable for use in harsh environments.
  • The power dissipation of the MIC5019YFT-T5 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5019YFT-T5 Overview

Use the download button to access the MIC5019YFT-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC50, or try a keyword search, such as MOSFET Drivers
