MIC5020YM - Microchip

Description: MICROCHIP - MIC5020YM - IC, DRIVER, MOSFET, LOW SIDE

Download MIC5020YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

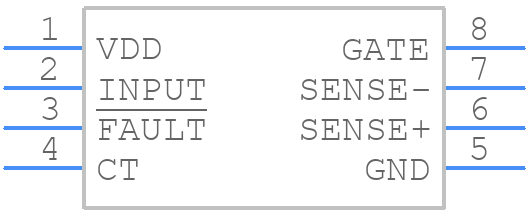

Symbol
MIC5020YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5020YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC (M)
click to zoom
3D Models
MIC5020YM - Microchip - 3D model - Small Outline Packages - 8-Lead SOIC (M)
click to zoom

MIC5020YM Details

  • Manufacturer Part Number:

    MIC5020YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.879 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    50 V

  • Supply Voltage1-Min:

    11 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1.5 µs

  • Turn-on Time:

    0.8 µs

  • Width:

    3.9 mm

MIC5020YM Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC5020YM involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • To ensure the MIC5020YM operates within the recommended junction temperature range, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the ambient temperature within the recommended range. Additionally, reducing the input voltage and output current can also help reduce the junction temperature.
  • The recommended input capacitor type for MIC5020YM is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The capacitor should be placed as close to the VIN pin as possible to minimize the inductance of the input traces.
  • To optimize the MIC5020YM for low standby power consumption, it's recommended to use a low-quiescent-current (Iq) regulator, such as the MIC5020YM-30YM, and to ensure that the input voltage is as low as possible while still meeting the required output voltage. Additionally, using a low-leakage inductor and minimizing the output capacitance can also help reduce standby power consumption.
  • The recommended output capacitor type for MIC5020YM is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The capacitor should be placed as close to the VOUT pin as possible to minimize the inductance of the output traces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5020YM Overview

Use the download button to access the MIC5020YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC50, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
