MIC5060YML-TR - Microchip

Description: Gate Drivers High or Low Side MOSFET Driver

Download MIC5060YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

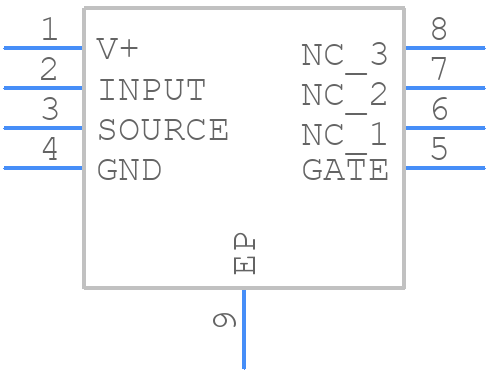

Symbol
MIC5060YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5060YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 lead
click to zoom

MIC5060YML-TR Details

  • Manufacturer Part Number:

    MIC5060YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    2.7 V

  • Supply Voltage1-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    140 µs

  • Width:

    3 mm

MIC5060YML-TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC5060YML-TR should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable start-up and shutdown, a soft-start circuit can be implemented to limit the inrush current. Additionally, a voltage supervisor can be used to monitor the input voltage and ensure that the MIC5060YML-TR is only enabled when the input voltage is within the recommended range.
  • The MIC5060YML-TR is a sensitive electronic component and requires proper handling to prevent damage. It is recommended to handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • To troubleshoot issues with the MIC5060YML-TR, start by verifying the input voltage and current, and checking the output voltage and current. Use an oscilloscope to monitor the output voltage and current waveforms, and check for any signs of oscillation or instability. Also, ensure that the device is properly cooled and that the thermal pad is properly connected to a heat sink or thermal pad.
  • The MIC5060YML-TR is a commercial-grade device and is not intended for use in high-reliability or high-temperature applications. For such applications, a more robust and reliable device with a higher temperature rating should be considered.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5060YML-TR Overview

Use the download button to access the MIC5060YML-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC50, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
