MIC5156-5.0BM - Microchip

Description: Linear Regulator Controller IC Positive Fixed 1 Output 8-SOIC

Download MIC5156-5.0BM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

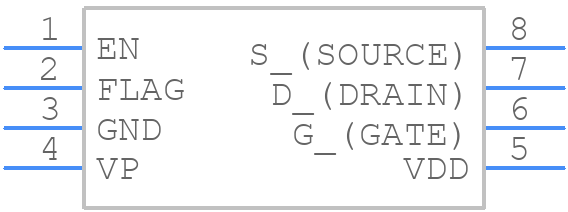

Symbol
MIC5156-5.0BM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5156-5.0BM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC (M)_21
click to zoom
3D Models
MIC5156-5.0BM - Microchip - 3D model - Small Outline Packages - 8-Pin SOIC (M)_21
click to zoom

MIC5156-5.0BM Details

  • Manufacturer Part Number:

    MIC5156-5.0BM

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    240

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    TIN LEAD

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5156-5.0BM Overview

Use the download button to access the MIC5156-5.0BM schematic symbol, PCB footprint, and 3D model.
