MIC5201YM-TR - Microchip

Description: LDO Voltage Regulators 200mA, 1% LDO Regulator

Download MIC5201YM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

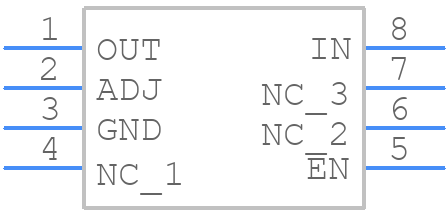

MIC5201YM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5201YM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC_1
click to zoom
3D Models
MIC5201YM-TR - Microchip - 3D model - Small Outline Packages - 8-Lead SOIC_1
click to zoom

MIC5201YM-TR Details

  • Manufacturer Part Number:

    MIC5201YM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.4 V

  • Dropout Voltage1-Nom:

    0.27 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

MIC5201YM-TR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MIC5201YM-TR is 12V, but it's recommended to operate within the specified input voltage range of 4.5V to 10V for optimal performance and reliability.
  • To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a small ceramic capacitor (around 100nF) between the input and ground pins to filter out noise.
  • The MIC5201YM-TR can operate with a minimum load current of 1mA, but it's recommended to have a minimum load of 10mA to ensure the regulator remains stable and provides a stable output voltage.
  • The MIC5201YM-TR is rated for operation up to 125°C, but it's essential to consider the thermal derating curves and ensure the device doesn't exceed the maximum junction temperature (Tj) of 150°C to maintain reliability and performance.
  • To protect the MIC5201YM-TR from input voltage transients and spikes, it's recommended to add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit between the input and ground pins to absorb and clamp the voltage spikes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5201YM-TR Overview

Use the download button to access the MIC5201YM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52, or try a keyword search, such as Linear Regulator ICs
