MIC5209YU-TR - Microchip

Description: LDO Voltage Regulators 500mA 1% Low Noise LDO

Download MIC5209YU-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIC5209YU-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

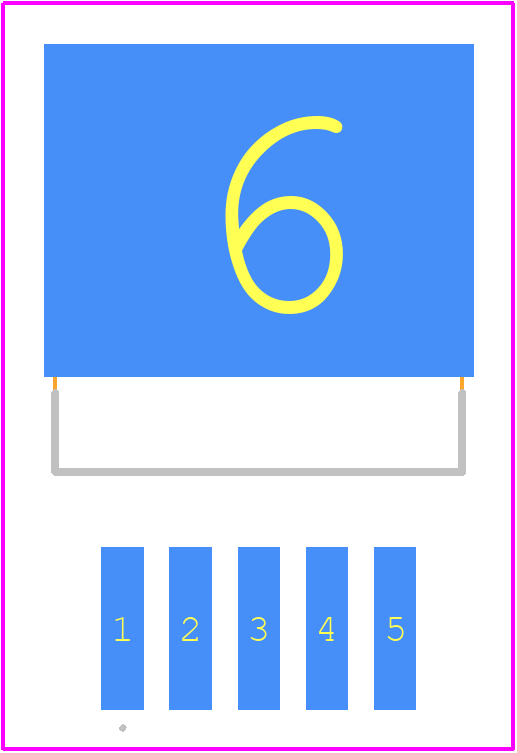

MIC5209YU-TR - Microchip PCB footprint - Other - Other - 5-LEAD PLASTIC (ET) [DDPAK]_2022
click to zoom

MIC5209YU-TR Details

  • Manufacturer Part Number:

    MIC5209YU-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    DDPAK-5

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.363 mm

  • Line Regulation-Max (%/V):

    0.0075

  • Load Regulation-Max(%):

    0.7%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Output Voltage1-Min:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.902 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Width:

    8.7755 mm

MIC5209YU-TR Frequently Asked Questions (FAQs)

  • The MIC5209YU-TR can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and GND pins. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended limits.
  • The MIC5209YU-TR has a built-in undervoltage lockout (UVLO) that prevents the device from starting up until the input voltage reaches approximately 2.5V. Once started, the device can operate down to 2.2V.
  • The MIC5209YU-TR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and follow the recommended thermal design guidelines.
  • The output voltage of the MIC5209YU-TR is adjustable using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 1.235V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5209YU-TR Overview

Use the download button to access the MIC5209YU-TR schematic symbol and PCB footprint.
