- Part Number MIC5219YMM
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Pin MSOP (MM)
- Released Date Jan 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIC5219YMM Details
-
Manufacturer Part Number:
MIC5219YMM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE, MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
MSOP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
29 Weeks
-
Manufacturer:
Microchip Technology Inc
MIC5219YMM Frequently Asked Questions (FAQs)
-
The MIC5219YMM can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 4.5V to 20V for optimal performance.
-
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and GND pins. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended limits.
-
The MIC5219YMM has a built-in undervoltage lockout (UVLO) feature that prevents the device from starting up until the input voltage reaches a minimum of 2.5V. Once started, the device can operate down to 2.2V.
-
The MIC5219YMM is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked and follow the recommended thermal design guidelines.
-
The output voltage of the MIC5219YMM is adjustable using the FB (feedback) pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1/R2 + 1), where R1 and R2 are the resistors connected to the FB pin.
Trust Checks
Community Provided
System Verified
Community Approved
MIC5219YMM Overview

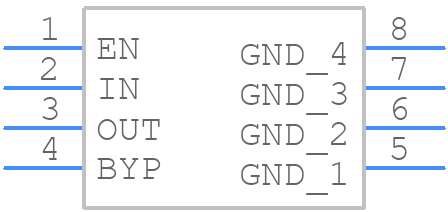

Use the download button to access the MIC5219YMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52,
or try a keyword search, such as Linear Regulator ICs
