MIC5239-3.3YM - Microchip

Description: LDO Voltage Regulator 3.3V 0.5A SOIC8 Micrel MIC5239-3.3YM, LDO Voltage Regulator, 500mA, 3.3 V ±2%, 2.3 → 30 Vin, 8-Pin SOIC

Download MIC5239-3.3YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

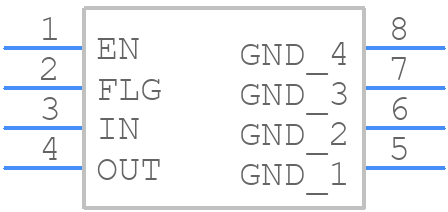

MIC5239-3.3YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5239-3.3YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5239-3.3YM
click to zoom
3D Models
MIC5239-3.3YM - Microchip - 3D model - Small Outline Packages - MIC5239-3.3YM
click to zoom

MIC5239-3.3YM Details

  • Manufacturer Part Number:

    MIC5239-3.3YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

MIC5239-3.3YM Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MIC5239-3.3YM is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input voltage ripple below 100mV.
  • The minimum input voltage required for the MIC5239-3.3YM to function properly is 2.7V, but it's recommended to keep it above 3.5V for optimal performance.
  • The MIC5239-3.3YM is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as temperature increases to ensure reliability.
  • The output voltage tolerance of the MIC5239-3.3YM is ±2% over the entire operating temperature range. You can calculate the output voltage tolerance by multiplying the nominal output voltage (3.3V) by the tolerance percentage (2%).
