MIC5239YM-TR - Microchip

Description: LDO Voltage Regulators High Vin, Low Iq Regulator

Download MIC5239YM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

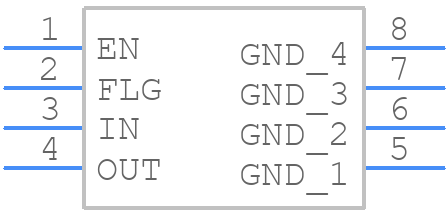

MIC5239YM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5239YM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5239YM-TR
click to zoom
3D Models
MIC5239YM-TR - Microchip - 3D model - Small Outline Packages - MIC5239YM-TR
click to zoom

MIC5239YM-TR Details

  • Manufacturer Part Number:

    MIC5239YM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

MIC5239YM-TR Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and avoid high-ESR output capacitors.
  • The maximum output current capability of the MIC5239YM-TR is 3A, but it can be limited by the thermal performance of the package and the PCB.
  • Yes, the MIC5239YM-TR is rated for operation up to 125°C, but the output current capability may be derated at higher temperatures.
  • The output voltage of the MIC5239YM-TR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage.
