MIC5239YM - Microchip

Description: LDO Voltage Regulators High Vin, Low Iq Regulator

Download MIC5239YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

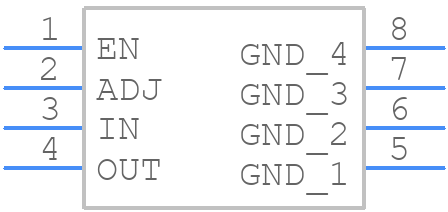

MIC5239YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5239YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5239YM
click to zoom
3D Models
MIC5239YM - Microchip - 3D model - Small Outline Packages - MIC5239YM
click to zoom

MIC5239YM Details

  • Manufacturer Part Number:

    MIC5239YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

MIC5239YM Frequently Asked Questions (FAQs)

  • The MIC5239YM can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the regulator to minimize parasitic inductance.
  • The MIC5239YM requires a minimum input voltage of 6.5V to function properly, but it's recommended to keep the input voltage above 7V for optimal performance.
  • The MIC5239YM is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • The power dissipation of the MIC5239YM can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5239YM Overview

Use the download button to access the MIC5239YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52, or try a keyword search, such as Linear Regulator ICs
