A good PCB layout for MIC5281-5.0YMM-TR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, using a 4-layer board with a dedicated power plane can help reduce noise and improve performance.
To ensure stability, make sure to follow the recommended capacitor values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output can help prevent oscillation.
The MIC5281-5.0YMM-TR is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Yes, the MIC5281-5.0YMM-TR is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, it's essential to follow the recommended PCB layout, thermal management, and testing guidelines to ensure the device meets the required reliability and performance standards.
To troubleshoot issues with the MIC5281-5.0YMM-TR, start by verifying the PCB layout and component values. Check for any signs of overheating, and ensure that the input and output capacitors are of high quality and properly connected. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or noise. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC5281-5.0YMM-TR Overview

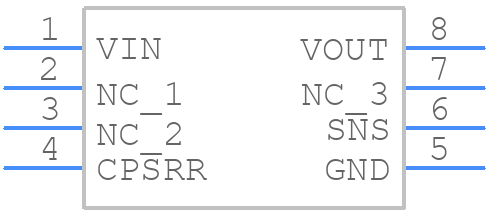

Use the download button to access the MIC5281-5.0YMM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52,
or try a keyword search, such as Other Regulators
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
