MIC5281-5.0YMM - Microchip

Description: Micrel, 4.75 → 5.25 V Low Dropout Voltage Regulator, 25mA, 1-Channel, ±3% 8-Pin, MSOP MIC5281-5.0YMM

Download MIC5281-5.0YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

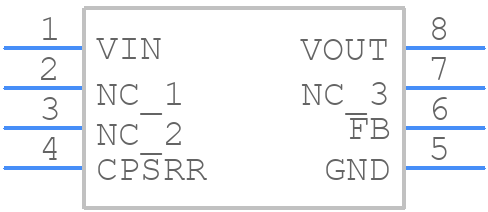

Symbol
MIC5281-5.0YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5281-5.0YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5281-5.0YMM
click to zoom
3D Models
MIC5281-5.0YMM - Microchip - 3D model - Small Outline Packages - MIC5281-5.0YMM
click to zoom

MIC5281-5.0YMM Details

  • Manufacturer Part Number:

    MIC5281-5.0YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    3 V

  • Dropout Voltage1-Nom:

    2 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.025 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MIC5281-5.0YMM Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC5281 evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general guideline is to use a low-ESR capacitor with a value between 10uF to 22uF. Microchip recommends using a capacitor with a voltage rating of at least 1.5 times the output voltage and a ripple current rating of at least 1.5 times the output current.
  • The maximum ambient temperature for the MIC5281-5.0YMM is 125°C, but the device can operate up to 150°C with derating. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the MIC5281-5.0YMM is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive applications and is available in a Pb-free, RoHS-compliant package. However, it's essential to consult with Microchip's application engineers to ensure the device meets the specific requirements of your application.
  • Microchip provides a troubleshooting guide in the MIC5281 datasheet, which covers common issues and their solutions. Additionally, Microchip's application engineers can provide support and guidance to help troubleshoot and resolve issues. It's essential to follow proper design and layout guidelines, ensure proper thermal management, and verify the input and output voltage and current ratings.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5281-5.0YMM Overview

Use the download button to access the MIC5281-5.0YMM schematic symbol, PCB footprint, and 3D model.
