MIC5281YMME - Microchip

Description: Microchip MIC5281YMME Linear Voltage Regulator, 25mA, Adjustable, 1.27 → 5.5 V, ±3%, MSOP 8-Pin

Download MIC5281YMME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

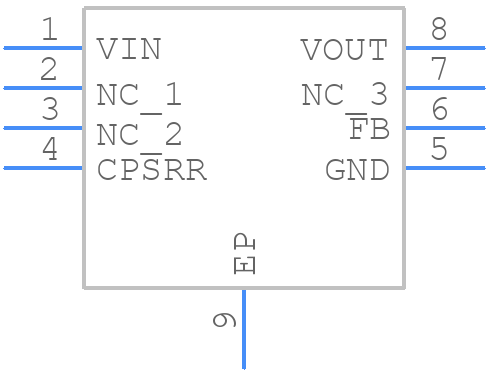

MIC5281YMME - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5281YMME - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 PIN EXPOSED PAD MSOP
click to zoom
3D Models
MIC5281YMME - Microchip - 3D model - Small Outline Packages - 8 PIN EXPOSED PAD MSOP
click to zoom

MIC5281YMME Details

  • Manufacturer Part Number:

    MIC5281YMME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    3 V

  • Dropout Voltage1-Nom:

    2 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.025 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.27 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.04 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC5281YMME Frequently Asked Questions (FAQs)

  • Microchip recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to help dissipate heat. Additionally, it's recommended to place thermal vias under the IC to improve heat dissipation. A good rule of thumb is to keep the thermal resistance (θJA) below 30°C/W.
  • To ensure proper biasing, make sure to connect the EN pin to a stable voltage source (e.g., VCC) and decouple it with a 10nF capacitor to ground. Also, ensure that the input voltage (VIN) is within the recommended range (2.7V to 5.5V) and that the output voltage (VOUT) is properly decoupled with a 10uF capacitor.
  • The MIC5281YMME can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the datasheet for the specific output current capability at your desired operating conditions.
  • To protect the MIC5281YMME from overvoltage and undervoltage conditions, consider adding overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits. For example, you can use a voltage supervisor IC (e.g., MIC803) to monitor the input voltage and reset the MIC5281YMME if it exceeds the recommended range.
  • The recommended input capacitor value for MIC5281YMME is 10uF to 22uF, with an ESR (Equivalent Series Resistance) of less than 1 ohm. This helps to filter out noise and ensure stable operation.
