MIC5282-3.3YMM-TR - Microchip

Description: LDO Voltage Regulators 120V/50mA Low Iq, High PSRR LDO

Download MIC5282-3.3YMM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

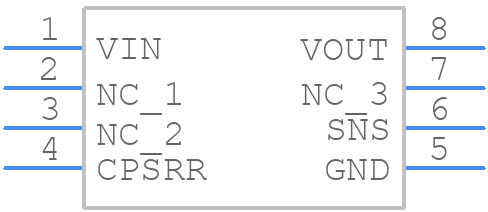

MIC5282-3.3YMM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5282-3.3YMM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP (MM)
click to zoom
3D Models
MIC5282-3.3YMM-TR - Microchip - 3D model - Small Outline Packages - 8-Pin MSOP (MM)
click to zoom

MIC5282-3.3YMM-TR Details

  • Manufacturer Part Number:

    MIC5282-3.3YMM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    2 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    1.815%

  • Load Regulation-Max:

    0.033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    3.465 V

  • Output Voltage1-Min:

    3.135 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MIC5282-3.3YMM-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC5282 evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The MIC5282-3.3YMM-TR has a thermal pad on the bottom of the package that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal via or a copper pour connected to a ground plane can be used to dissipate heat. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
  • The recommended input capacitor value for the MIC5282-3.3YMM-TR is 10uF to 22uF, with a voltage rating of at least 6.3V. The capacitor should be placed as close to the input pin as possible to minimize noise and ensure stable operation.
  • The MIC5282-3.3YMM-TR is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for more information on temperature derating.
  • To troubleshoot issues with the MIC5282-3.3YMM-TR, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check for proper PCB layout, thermal management, and component selection. Use an oscilloscope to check for noise and oscillations on the output. Consult the datasheet and application notes for more troubleshooting tips.
