MIC5283-5.0YME-TR - Microchip

Description: Linear Voltage Regulators 120V/150mA Low PSSR Linear Regulator

Download MIC5283-5.0YME-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

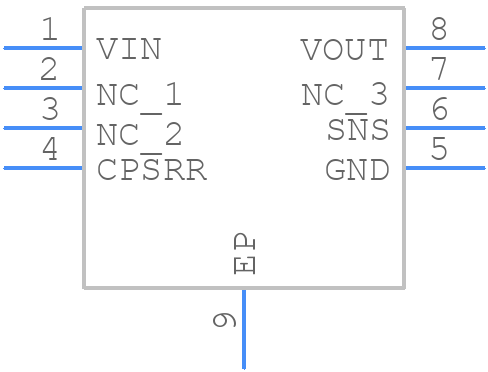

Symbol
MIC5283-5.0YME-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5283-5.0YME-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 -Pin Exposed pad soic (Me)
click to zoom
3D Models
MIC5283-5.0YME-TR - Microchip - 3D model - Small Outline Packages - 8 -Pin Exposed pad soic (Me)
click to zoom

MIC5283-5.0YME-TR Details

  • Manufacturer Part Number:

    MIC5283-5.0YME-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    2.8 V

  • Dropout Voltage1-Nom:

    1.8 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.93 mm

  • Line Regulation-Max:

    2.75%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.94 mm

MIC5283-5.0YME-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC5283-5.0YME-TR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, using a 4-layer board with a dedicated power plane can help reduce noise and improve performance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output can help prevent oscillation.
  • The MIC5283-5.0YME-TR can handle input voltages up to 6.5V, but it's recommended to keep the input voltage below 6V to ensure reliable operation and prevent damage to the IC.
  • The MIC5283-5.0YME-TR is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage of the MIC5283-5.0YME-TR can be calculated using the formula: Vout = (1 + R2/R1) * 1.25V, where R1 and R2 are the resistors in the feedback network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5283-5.0YME-TR Overview

Use the download button to access the MIC5283-5.0YME-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52, or try a keyword search, such as Linear Regulator ICs
