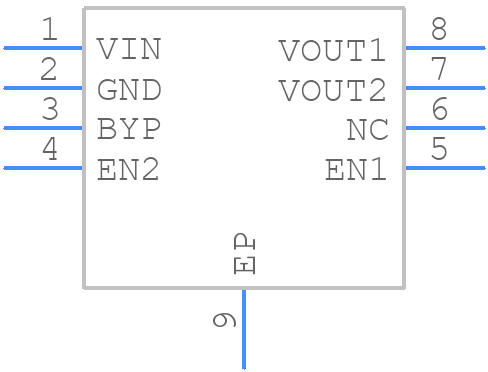

MIC5330-PGYML-TR - Microchip

MIC5330-PGYML-TR Details

• Manufacturer Part Number:

  MIC5330-PGYML-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MLF-8

• Pin Count:

  8

• Manufacturer Package Code:

  VDFN-8

• Country Of Origin:

  Mainland China, Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.2 V

• Dropout Voltage1-Nom:

  0.075 V

• Dropout Voltage2-Max:

  0.2 V

• Input Voltage Absolute-Max:

  7 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4 V

• JESD-30 Code:

  S-XDSO-N8

• JESD-609 Code:

  e4

• Length:

  2 mm

• Line Regulation-Max:

  0.027%

• Load Regulation-Max:

  0.015%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Current2-Max:

  0.3 A

• Output Voltage1-Max:

  3.09 V

• Output Voltage1-Min:

  2.91 V

• Output Voltage1-Nom:

  3 V

• Output Voltage2-Max:

  1.854 V

• Output Voltage2-Min:

  1.746 V

• Output Voltage2-Nom:

  1.8 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.079,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.95 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Voltage Tolerance-Max:

  3%

• Width:

  2 mm
