MIC5357-SGYMME - Microchip

Description: Microchip Technology MIC5357-SGYMME, LDO Regulator, 500mA Adjustable, 1.8 → 3.8 V, ±3% 8-Pin, MSOP

Download MIC5357-SGYMME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

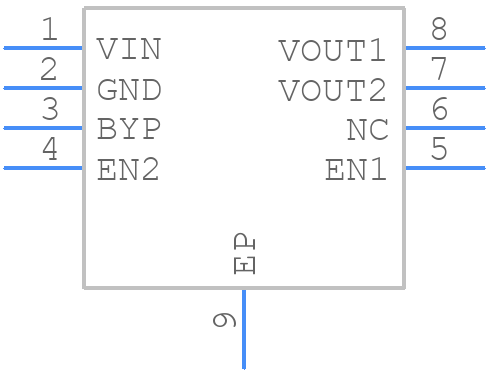

MIC5357-SGYMME - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5357-SGYMME - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin ePAD MSOP
click to zoom
3D Models
MIC5357-SGYMME - Microchip - 3D model - Small Outline Packages - 8-Pin ePAD MSOP
click to zoom

MIC5357-SGYMME Details

  • Manufacturer Part Number:

    MIC5357-SGYMME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Dropout Voltage2-Max:

    0.3 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max:

    0.0825%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Current2-Max:

    0.5 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    1.854 V

  • Output Voltage2-Min:

    1.746 V

  • Output Voltage2-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.04 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC5357-SGYMME Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output stability.
  • To ensure the MIC5357-SGYMME operates within its SOA, ensure that the input voltage, output current, and junction temperature are within the recommended specifications. Also, avoid operating the device near its maximum ratings for extended periods.
  • The maximum output current capability of the MIC5357-SGYMME is 1.5A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
  • To minimize noise and ensure reliable operation, follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Also, ensure that the input and output capacitors are placed close to the device and connected to the correct pins.
  • The thermal resistance of the MIC5357-SGYMME package is typically around 30°C/W. This value can be used to estimate the junction temperature of the device based on the ambient temperature and power dissipation.
