MIC5800YM - Microchip

Description: Latches 4-Bit Parallel-in Latched Driver

Download MIC5800YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

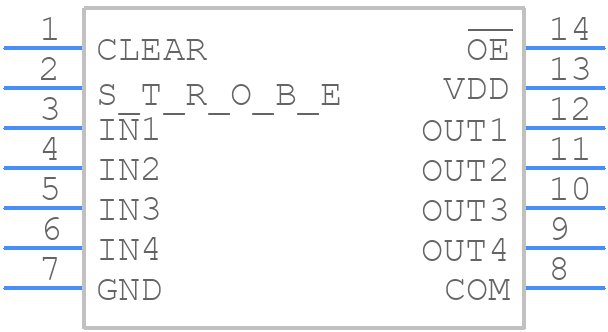

MIC5800YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5800YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14-ren1
click to zoom
3D Models
MIC5800YM - Microchip - 3D model - Small Outline Packages - SOIC-14-ren1
click to zoom

MIC5800YM Details

  • Manufacturer Part Number:

    MIC5800YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOIC-14

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1992-02-01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

MIC5800YM Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MIC5800YM involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, the MIC5800YM requires a minimum ESR (Equivalent Series Resistance) of 0.1 ohms for the output capacitor. Additionally, the output capacitor should be placed close to the device, and the input and output traces should be kept short and away from each other.
  • The MIC5800YM can handle a maximum input voltage of 28V, but it is recommended to operate within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The output voltage of the MIC5800YM can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage (typically 1.25V).
  • The MIC5800YM can deliver a maximum output current of 1.5A, but it is recommended to operate within the specified output current range of 0.1A to 1.2A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5800YM Overview

Use the download button to access the MIC5800YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC58, or try a keyword search, such as Peripheral Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
