A good PCB layout for MIC5801YV-TR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive analog circuits can help minimize EMI.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback resistors are chosen to provide a stable gain margin. Additionally, a compensation network may be required to stabilize the converter, depending on the specific application.
The MIC5801YV-TR has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the MIC5801YV-TR is suitable for high-reliability applications. It has a high MTBF (mean time between failures) and is manufactured using a robust process. However, ensure that the device is operated within its recommended specifications and that proper design and testing procedures are followed.
To troubleshoot oscillations or instability issues, check the PCB layout, ensure proper component selection, and verify that the input and output capacitors are properly sized. Also, check for noise on the input or output, and ensure that the feedback loop is properly compensated. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC5801YV-TR Overview

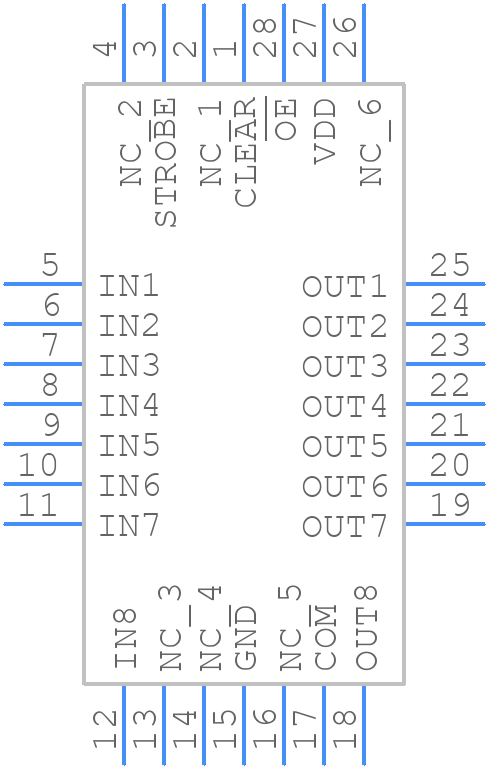

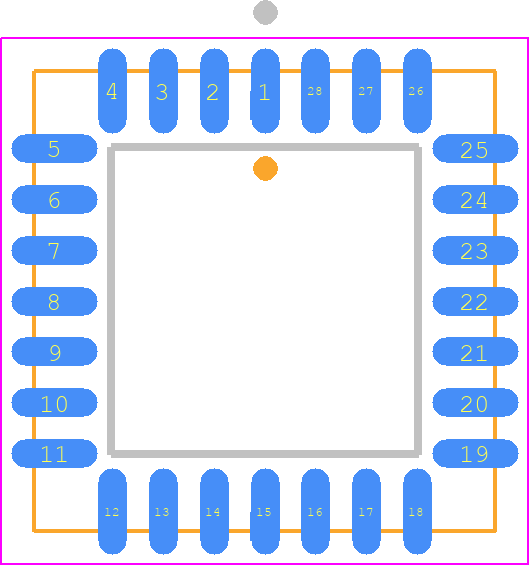

Use the download button to access the MIC5801YV-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC58,
or try a keyword search, such as Peripheral Drivers
