MIC5891BN - Microchip

Description: IC PWR DRIVER BIPOLAR 1:8 16DIP

Download MIC5891BN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

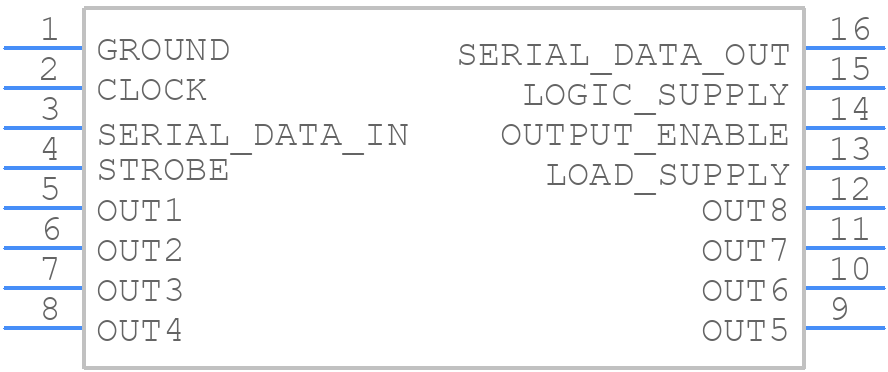

MIC5891BN - Microchip - PCB symbol
click to zoom
PCB Footprints

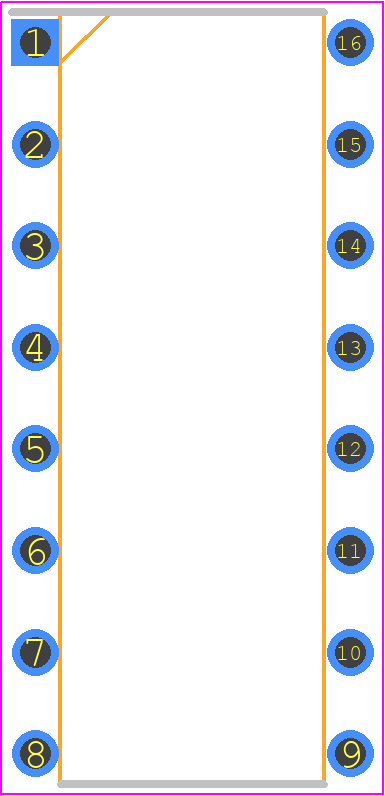

MIC5891BN - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-16LD-PL-1
click to zoom
3D Models
MIC5891BN - Microchip - 3D model - Dual-In-Line Packages - PDIP-16LD-PL-1
click to zoom

MIC5891BN Details

  • Manufacturer Part Number:

    MIC5891BN

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP, DIP16,.3

  • Pin Count:

    16

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    12 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage1-Nom:

    50 V

  • Surface Mount:

    NO

  • Technology:

    BIMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    2 µs

  • Width:

    7.62 mm

MIC5891BN Frequently Asked Questions (FAQs)

  • The MIC5891BN can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input and output capacitance, and avoid long input traces. Additionally, the MIC5891BN has an internal compensation network, so no external compensation is required.
  • The MIC5891BN can operate with input voltages as low as 4.5V, but the output voltage regulation may not be guaranteed below 5V. For optimal performance, it's recommended to operate with input voltages above 5V.
  • The MIC5891BN is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management and heat sinking to prevent overheating.
  • The output voltage of the MIC5891BN is adjustable using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 1.24V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5891BN Overview

Use the download button to access the MIC5891BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC58, or try a keyword search, such as Peripheral Drivers
