MIC5891YWM-TR - Microchip

Description: MICROCHIP - MIC5891YWM-TR - LATCHED SOURCE DRIVER, 0.5A, WSOIC-16

Download MIC5891YWM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

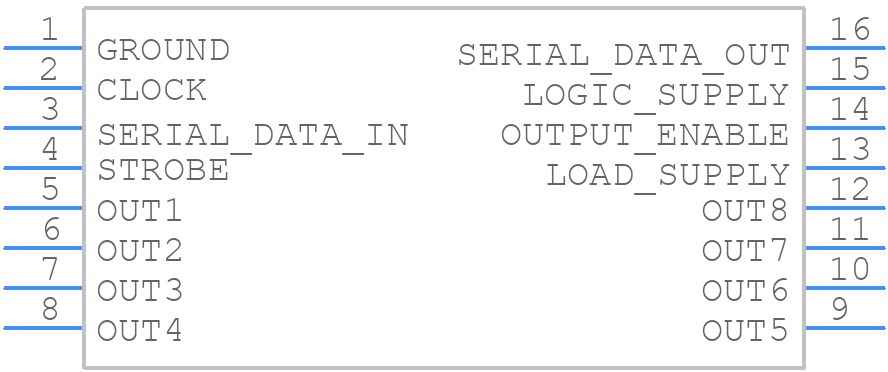

Symbol
MIC5891YWM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5891YWM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5891YWM-TR
click to zoom
3D Models
MIC5891YWM-TR - Microchip - 3D model - Small Outline Packages - MIC5891YWM-TR
click to zoom

MIC5891YWM-TR Details

  • Manufacturer Part Number:

    MIC5891YWM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.34 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Output Current Flow Direction:

    SOURCE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    12 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage1-Nom:

    50 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    2 µs

  • Width:

    7.52 mm

MIC5891YWM-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC5891YWM-TR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive analog circuits can help minimize EMI.
  • To ensure the MIC5891YWM-TR operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 2x the maximum input voltage.
  • To optimize the MIC5891YWM-TR for low standby power consumption, ensure the EN pin is properly biased, use a low-quiescent-current voltage regulator, and minimize the input voltage. Additionally, consider using a low-power mode or shutdown feature if available.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the output capacitor. The capacitor should be placed close to the VOUT pin and have a voltage rating of at least 2x the maximum output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5891YWM-TR Overview

Use the download button to access the MIC5891YWM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC58, or try a keyword search, such as Peripheral Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
