MIC59300YME - Microchip

Description: Micrel MIC59300YME, Fast LDO Voltage Regulator, 4.7A Adjustable, 0.5 → 3.3 V, ±1% 8-Pin, SOIC

Download MIC59300YME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

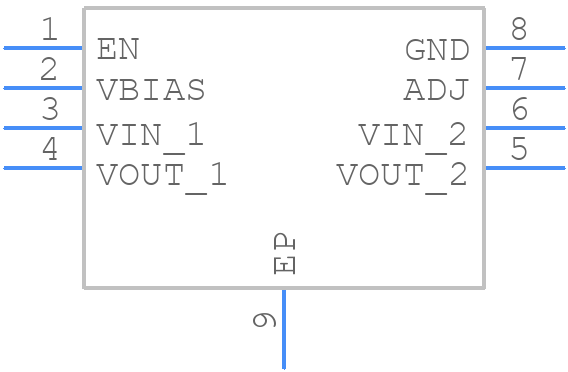

MIC59300YME - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC59300YME - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin EPAD SOIC
click to zoom
3D Models
MIC59300YME - Microchip - 3D model - Small Outline Packages - 8-Pin EPAD SOIC
click to zoom

MIC59300YME Details

  • Manufacturer Part Number:

    MIC59300YME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    2.1 V

  • Dropout Voltage1-Nom:

    0.205 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.93 mm

  • Load Regulation-Max(%):

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    85 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    3.3 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

MIC59300YME Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and to place the MIC59300YME near a thermal pad or a heat sink.
  • To ensure reliable operation at high temperatures, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet, and to ensure good airflow around the device.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for optimal performance. The capacitor should be placed as close to the VIN pin as possible.
  • To prevent EMI, it is recommended to use a shielded inductor, to keep the switching node (SW) away from sensitive analog circuits, and to use a common-mode choke or ferrite bead on the input and output lines.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for optimal performance. The capacitor should be placed as close to the VOUT pin as possible.
