MIC59P50YWM-TR - Microchip

Description: Latches 8-Bit Parallel Input Protected Latched Driver

Download MIC59P50YWM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

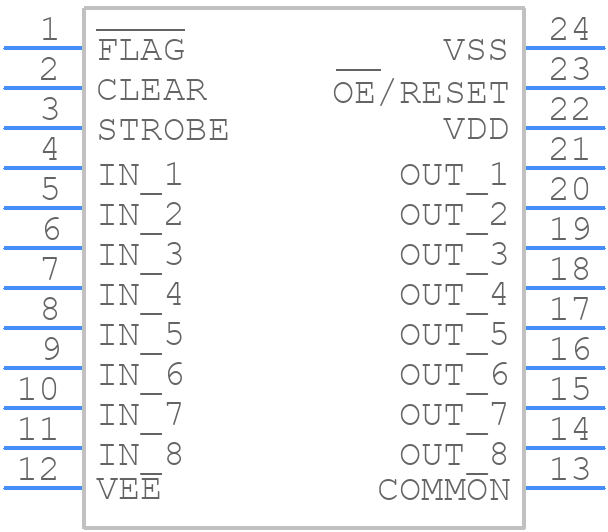

MIC59P50YWM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC59P50YWM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC59P50YWM-TR
click to zoom
3D Models
MIC59P50YWM-TR - Microchip - 3D model - Small Outline Packages - MIC59P50YWM-TR
click to zoom

MIC59P50YWM-TR Details

  • Manufacturer Part Number:

    MIC59P50YWM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOIC-24

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    8

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LATCH BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.42 mm

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Min:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.52 mm

MIC59P50YWM-TR Frequently Asked Questions (FAQs)

  • The thermal resistance (θJA) of the MIC59P50YWM-TR is 45°C/W, which means that for every watt of power dissipated, the junction temperature will rise by 45°C above the ambient temperature.
  • Yes, the MIC59P50YWM-TR is a high-reliability device that is suitable for use in demanding applications such as aerospace, defense, and industrial control systems. It is manufactured using a high-reliability process and is screened to ensure high performance and long-term reliability.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point of 220°C or higher. The device should be soldered to a PCB with a copper pad size of at least 1.5 mm x 1.5 mm to ensure good thermal conduction.
  • The recommended input capacitor value for the MIC59P50YWM-TR is 10 μF to 22 μF, with a voltage rating of at least 50 V. This capacitor helps to filter out noise and ripple on the input voltage and ensures stable operation of the device.
  • Yes, the MIC59P50YWM-TR can be used in a parallel configuration to increase the output current. However, it is essential to ensure that the devices are properly synchronized and that the output currents are balanced to prevent uneven current sharing and potential damage to the devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC59P50YWM-TR Overview

Use the download button to access the MIC59P50YWM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC59, or try a keyword search, such as Peripheral Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
