MIC61300YML-TR - Microchip

Description: LDO Voltage Regulators Low VIN, Single Supply, 3A LDO

Download MIC61300YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

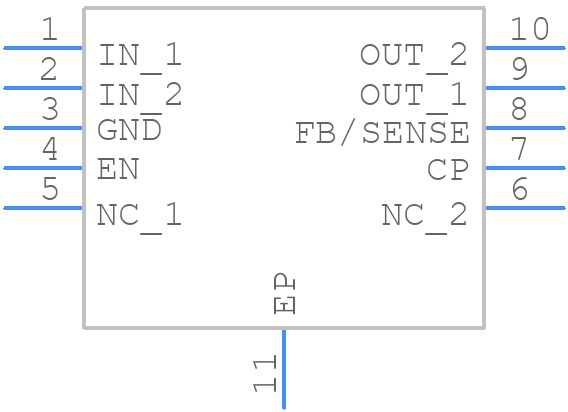

MIC61300YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC61300YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Pin 3mm x 3mm MLF (ML)
click to zoom
3D Models
MIC61300YML-TR - Microchip - 3D model - Small Outline No-lead - 10-Pin 3mm x 3mm MLF (ML)
click to zoom

MIC61300YML-TR Details

  • Manufacturer Part Number:

    MIC61300YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, MLF-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.35 V

  • Dropout Voltage1-Nom:

    0.15 V

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.35%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    3 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MIC61300YML-TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC61300YML-TR should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended operating temperature range (–40°C to +125°C). Also, ensure proper thermal design, including a heat sink or thermal pad, and follow the recommended PCB layout guidelines.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure optimal performance.
  • To minimize EMI, ensure that the MIC61300YML-TR is placed away from noise-sensitive components, and use a shielded cable or twisted pair wiring for input and output connections. Additionally, follow proper PCB layout guidelines, including separating analog and digital grounds, and using a common mode choke or ferrite bead on the input lines.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC61300YML-TR Overview

Use the download button to access the MIC61300YML-TR schematic symbol, PCB footprint, and 3D model.
