MIC68220YML-TR - Microchip

Description: LDO Voltage Regulators Dual 2A with Ramp Control

Download MIC68220YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

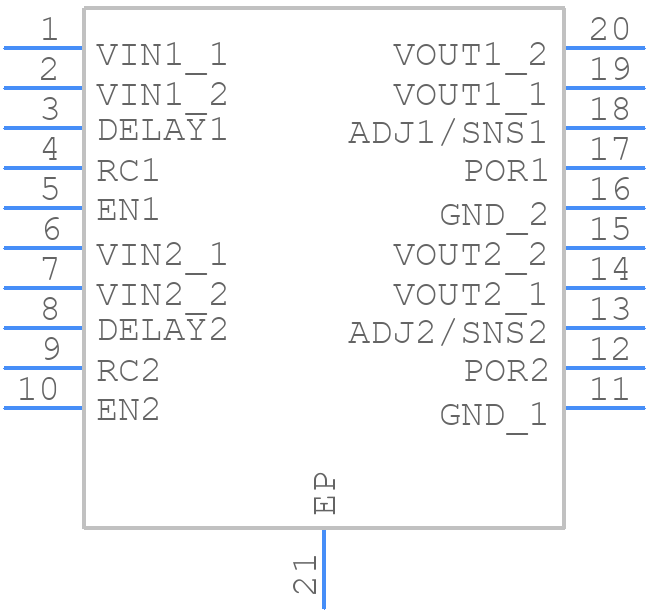

Symbol
MIC68220YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC68220YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - mlf20pin son
click to zoom
3D Models
MIC68220YML-TR - Microchip - 3D model - Small Outline No-lead - mlf20pin son
click to zoom

MIC68220YML-TR Details

  • Manufacturer Part Number:

    MIC68220YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, MLF-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    VDFN-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-XDSO-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC20,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

MIC68220YML-TR Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if possible. Refer to Microchip's application note AN1123 for more information.
  • Ensure that the input voltage rises monotonically during start-up, and falls slowly during shutdown. A soft-start circuit can help with this. Also, ensure that the input capacitor is properly sized to handle inrush current.
  • The datasheet doesn't specify a maximum allowed input voltage ripple, but as a general rule, it's recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation.
  • The MIC68220YML-TR is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is properly heat-sinked and that the thermal design is adequate for the operating environment.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or instability. Verify that the input voltage is within the recommended range, and that the output voltage is within the specified tolerance. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC68220YML-TR Overview

Use the download button to access the MIC68220YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC68, or try a keyword search, such as Linear Regulator ICs
