- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MIC68400YML-TR
- Part Number MIC68400YML-TR
- Manufacturer Microchip
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - MIC2215-AAAYML-TR
- Released Date Feb 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIC68400YML-TR Details
-
Manufacturer Part Number:
MIC68400YML-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MLF-16
-
Pin Count:
16
-
Manufacturer Package Code:
VQFN-16
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
8
MIC68400YML-TR Frequently Asked Questions (FAQs)
-
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the PCB layout allows for good airflow around the device.
-
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (–40°C to +125°C). Also, consider using thermal management techniques such as heat sinks, thermal interfaces, or forced air cooling to keep the device temperature within a safe operating range.
-
The recommended input capacitor is a 10uF ceramic capacitor with an X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with an X7R or X5R dielectric. These capacitors help to filter out noise and ensure stable operation.
-
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Ensure that the input voltage is within the specified range, and the output voltage is within the desired range. Also, check for any signs of overheating, and verify that the device is properly soldered and connected.
-
To minimize EMI and EMC issues, ensure that the device is placed in a shielded area, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, use a low-ESR output capacitor to reduce high-frequency noise, and consider using a shielded cable or twisted pair wiring for output connections.
Trust Checks
Expert Contribution
System Verified
Community Approved
MIC68400YML-TR Overview

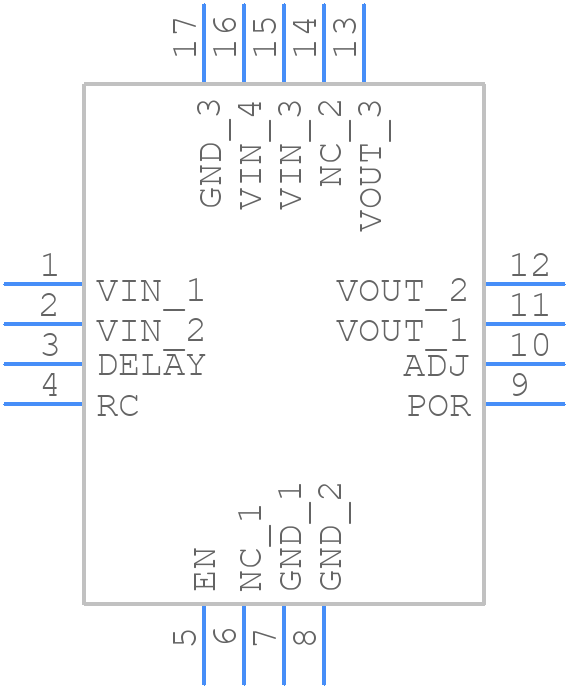

Use the download button to access the MIC68400YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC68,
or try a keyword search, such as Linear Regulator ICs
