MIC69101-1.8YML-TR - Microchip

Description: LDO Voltage Regulators 1A, Low VIN, Single Supply LDO

Download MIC69101-1.8YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

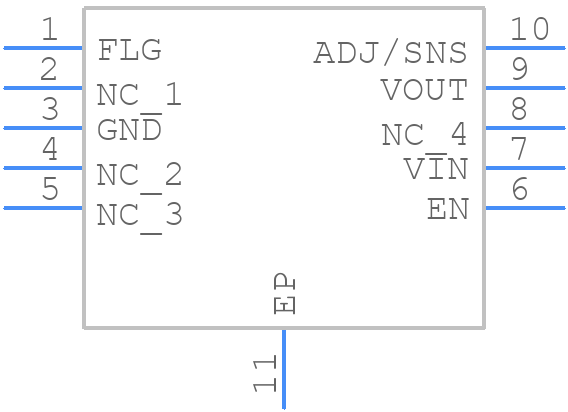

MIC69101-1.8YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC69101-1.8YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MF)10-Lead(DFN)-
click to zoom
3D Models
MIC69101-1.8YML-TR - Microchip - 3D model - Small Outline No-lead - (MF)10-Lead(DFN)-
click to zoom

MIC69101-1.8YML-TR Details

  • Manufacturer Part Number:

    MIC69101-1.8YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLF-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.215 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.01458%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

MIC69101-1.8YML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC69101-1.8YML-TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat efficiently.
  • To ensure a stable and accurate output voltage, it's essential to follow proper layout and decoupling guidelines. Use a low-ESR capacitor (e.g., X5R or X7R) for input and output decoupling, and place them close to the device. Additionally, ensure that the input voltage is within the recommended range, and the output is not overloaded.
  • The maximum input voltage that can be applied to the MIC69101-1.8YML-TR is 6.5V. Exceeding this voltage may cause damage to the device or affect its performance.
  • The MIC69101-1.8YML-TR is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked, and the PCB is designed to handle the increased thermal stress.
  • To troubleshoot issues with the MIC69101-1.8YML-TR, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the output voltage and current waveforms. If issues persist, consult the datasheet and application notes or contact Microchip's technical support.
