SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.9 mm
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
4 mm
MIC69303YML-TR Frequently Asked Questions (FAQs)
A good PCB layout for MIC69303YML-TR involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and keep the switching node (SW) away from sensitive analog nodes.
To ensure stability, it's essential to follow the recommended compensation network, use a suitable output capacitor with low ESR, and ensure the input capacitor is properly sized. Additionally, the device should be operated within its recommended operating conditions, and the output voltage should be set within the specified range.
The MIC69303YML-TR is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure the device operates within its thermal limits to prevent overheating and ensure reliability.
Yes, the MIC69303YML-TR is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
To troubleshoot issues with MIC69303YML-TR, start by verifying the input voltage, output voltage, and current. Check the PCB layout and ensure it meets the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and switching frequency. If the issue persists, consult the datasheet and application notes or contact Microchip's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC69303YML-TR Overview

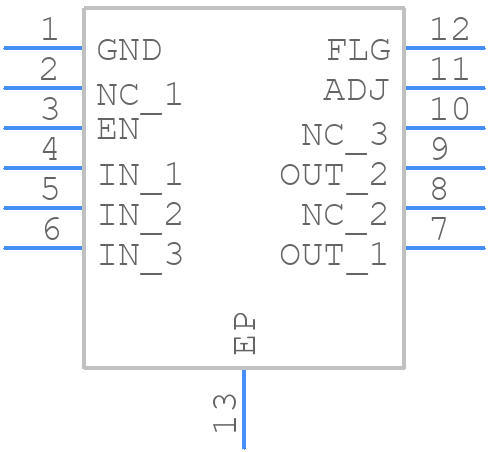

Use the download button to access the MIC69303YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC69,
or try a keyword search, such as Other Regulators
