MIC69502WR-TR - Microchip

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 5A S-PAK-7

Download MIC69502WR-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

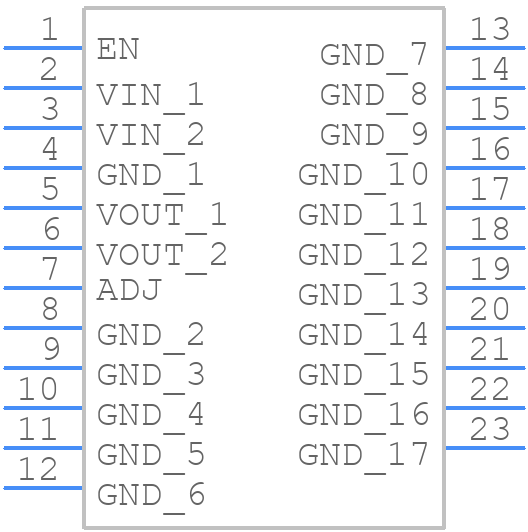

MIC69502WR-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

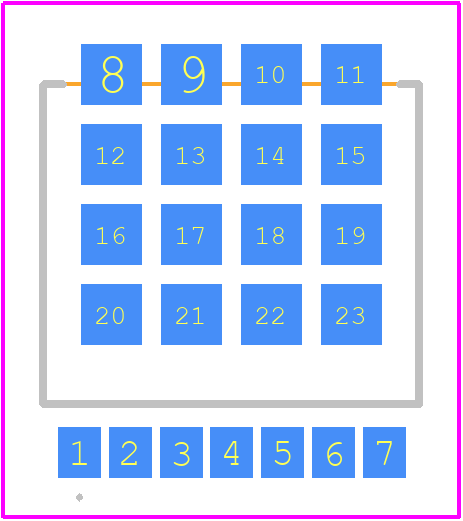

MIC69502WR-TR - Microchip PCB footprint - Other - Other - 7-Lead Plastic [Surface] Flange-Mount Package (8CA) - [SPAK]
click to zoom

MIC69502WR-TR Details

  • Manufacturer Part Number:

    MIC69502WR-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    7

  • Manufacturer Package Code:

    SPAK-7

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    9.395 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP7H,.37,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    2.03 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    8 mm

MIC69502WR-TR Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides some guidelines, but a more detailed application note or a thermal simulation tool can provide more specific guidance.
  • In addition to following the recommended operating conditions, ensure that the device is properly soldered, and the PCB is designed to minimize thermal gradients. Also, consider using a thermocouple or temperature sensor to monitor the device temperature.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, increased thermal resistance, and potentially even device failure. It's essential to design the system to stay within the recommended temperature range to ensure reliability and longevity.
  • While the device is designed to be robust, high-vibration environments can still cause issues. Consider using additional mechanical support, such as a bracket or potting compound, to ensure the device remains securely attached to the PCB.
  • Start by reviewing the datasheet and application notes, then use a systematic approach to isolate the issue. Check the power supply, input signals, and output loads. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the problem.
