MIC94325YMT-T5 - Microchip

Description: Microchip MIC94325YMT-T5, LDO Regulator, 500mA Adjustable, 1.2 to 3.4 V, 3%, TDFN 6-Pin

Download MIC94325YMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

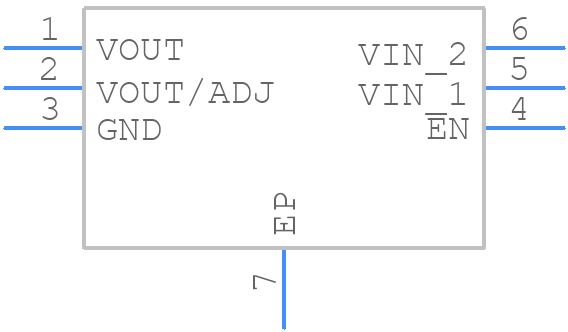

MIC94325YMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94325YMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-pin 1.6x1.6mm TDFN (MT)
click to zoom
3D Models
MIC94325YMT-T5 - Microchip - 3D model - Small Outline No-lead - 6-pin 1.6x1.6mm TDFN (MT)
click to zoom

MIC94325YMT-T5 Details

  • Manufacturer Part Number:

    MIC94325YMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Line Regulation-Max (%/V):

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

MIC94325YMT-T5 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC94325YMT-T5 should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended operating temperature range (–40°C to +125°C). Also, ensure proper thermal design, including a heat sink or thermal pad, and follow the recommended PCB layout guidelines.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor (CIN). This value provides a good balance between noise filtering and stability.
  • To minimize EMI, ensure that the MIC94325YMT-T5 is placed away from noise-sensitive components, and use a shielded inductor or a common-mode choke to reduce radiated emissions. Also, follow good PCB layout practices, such as separating analog and digital grounds, and using a solid ground plane.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the output capacitor (COUT). This value provides a good balance between output voltage ripple and stability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC94325YMT-T5 Overview

Use the download button to access the MIC94325YMT-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC94, or try a keyword search, such as Other Regulators
