MIC94325YMT-TR - Microchip

Description: MICROCHIP - MIC94325YMT-TR - Adjustable LDO Voltage Regulator, 1.8V to 3.6V, 100mV drop, 1.8V to 3.6V/500mA out, TDFN-20

Download MIC94325YMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

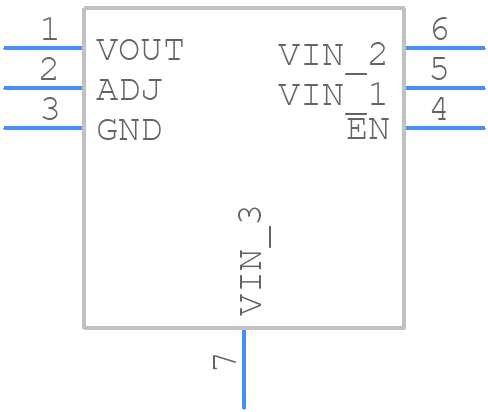

MIC94325YMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94325YMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 - pin 1.6 mm x 1.6 mm 1TDFN
click to zoom
3D Models
MIC94325YMT-TR - Microchip - 3D model - Small Outline No-lead - 6 - pin 1.6 mm x 1.6 mm 1TDFN
click to zoom

MIC94325YMT-TR Details

  • Manufacturer Part Number:

    MIC94325YMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Line Regulation-Max (%/V):

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

MIC94325YMT-TR Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides some guidelines, but a more detailed application note or a reference design would be helpful.
  • In addition to following the recommended PCB layout, ensure that the device is properly soldered, and the thermal interface material is applied correctly. Also, consider using a thermal sensor to monitor the temperature and implement thermal throttling or shutdown if necessary.
  • Operating the device at a lower voltage may affect its performance, including reduced output current capability and potentially increased dropout voltage. Consult the datasheet for specific voltage vs. current characteristics.
  • Use a systematic approach to troubleshoot: check the input voltage, output voltage, and current; verify the PCB layout and thermal design; and use a scope or logic analyzer to monitor the device's behavior. Consult the datasheet and application notes for specific guidance.
  • Yes, the device can be sensitive to electromagnetic interference. Follow proper PCB layout and shielding guidelines, and consider using EMI filters or shielding components to minimize emissions and susceptibility.
