For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the IC to dissipate heat efficiently. A minimum of 4-6 thermal vias with a diameter of 0.3-0.5 mm is recommended.
To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design guidelines, use a suitable thermal interface material, and ensure adequate airflow around the device. Additionally, consider using a thermistor or thermocouple to monitor the device temperature and implement thermal protection mechanisms if necessary.
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, to minimize EMI/EMC issues, it is recommended to follow proper PCB design guidelines, use a shielded enclosure, and ensure that the device is properly grounded. Additionally, consider using EMI filters or common-mode chokes on the input and output lines, and ensure that the device is operated within its specified frequency range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC94345-GYMT-TR Overview

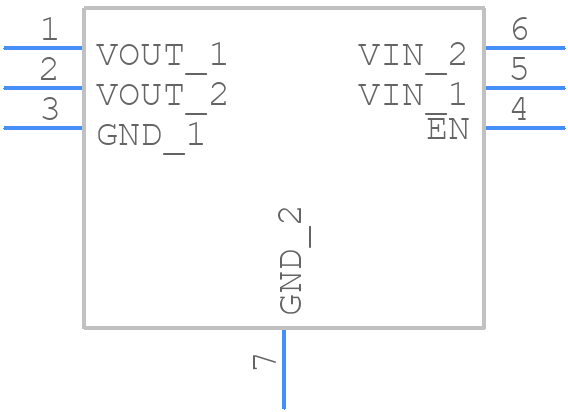

Use the download button to access the MIC94345-GYMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC94,
or try a keyword search, such as Linear Regulator ICs
