MIC94345-SYMT-TR - Microchip

Description: LDO Voltage Regulators 500mA Fixed Output LDO with Ripple Blocker Technology

Download MIC94345-SYMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

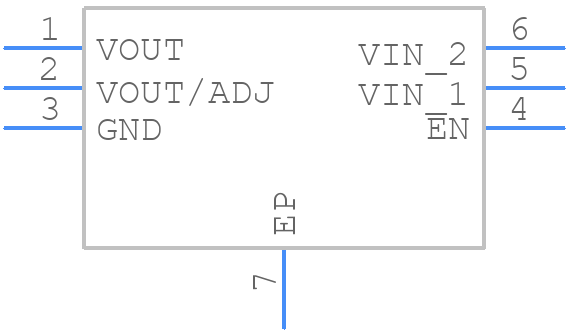

Symbol
MIC94345-SYMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94345-SYMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - ****6 - pin 1.6 mm x 1.6 mm TDFN
click to zoom
3D Models
MIC94345-SYMT-TR - Microchip - 3D model - Small Outline No-lead - ****6 - pin 1.6 mm x 1.6 mm TDFN
click to zoom

MIC94345-SYMT-TR Details

  • Manufacturer Part Number:

    MIC94345-SYMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage Absolute-Max:

    4 V

  • Input Voltage-Max:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    3%

  • Width:

    1.6 mm

MIC94345-SYMT-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC94345-SYMT-TR should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the device.
  • The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. The capacitors should be placed as close to the device as possible.
  • Check the input voltage, output voltage, and enable pin for proper connection and voltage levels. Verify that the input capacitor and output capacitor are properly connected and meet the recommended specifications. Also, check for any short circuits or overload conditions.
  • The recommended soldering profile for the MIC94345-SYMT-TR is a peak temperature of 260°C, with a dwell time of 30-60 seconds above 220°C. The device should be soldered using a reflow oven or a soldering iron with a temperature-controlled tip.
