MIC94355-4YMT-T5 - Microchip

Description: Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 6-TDFN (1.6x1.6)

Download MIC94355-4YMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

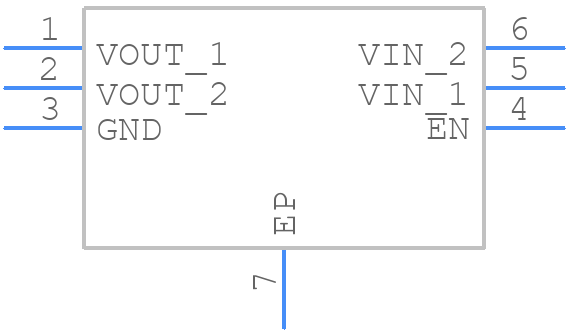

MIC94355-4YMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94355-4YMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead 1.6mm x 1.6mm UDFN [HKA]
click to zoom
3D Models
MIC94355-4YMT-T5 - Microchip - 3D model - Small Outline No-lead - 6-Lead 1.6mm x 1.6mm UDFN [HKA]
click to zoom

MIC94355-4YMT-T5 Details

  • Manufacturer Part Number:

    MIC94355-4YMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Regulation-Max:

    0.012%

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.236 V

  • Output Voltage1-Min:

    1.164 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    3%

  • Width:

    1.6 mm

MIC94355-4YMT-T5 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC94355 evaluation board user's guide, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to ensure optimal performance, low noise, and high efficiency.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, output current, and switching frequency. Microchip provides a list of recommended inductors in the datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers to find the suitable component.
  • The MIC94355-4YMT-T5 has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature depends on the specific application and the thermal management system used. Engineers should ensure that the device is properly cooled and the ambient temperature is within the recommended range to ensure reliable operation.
  • Yes, the MIC94355-4YMT-T5 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, engineers should ensure that the device is used within the recommended operating conditions and follows the guidelines for high-reliability design and manufacturing.
  • Microchip provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their solutions. Engineers can also use oscilloscopes and other diagnostic tools to identify the root cause of the issue and consult with Microchip's technical support team for further assistance.
